D-Micro 2.2 Inch Digital Micro FPV Frame

D-Micro brings true digital HD FPV to the micro world. Designed around the
DJI O4 Air Unit (Light), this 2.2 inch micro FPV frame gives you the
freestyle feel of a bigger quad in a much smaller, quieter and safer package.

The frame uses two 3K carbon plates tied together with 20 mm M2 standoffs, keeping the
layout compact while protecting both motors and electronics. The bare frame with hardware weighs
around 15 g, so typical builds (without battery) land in the 40–70 g range
and remain comfortably under 250 g AUW.

D-Micro supports bottom mounting of 25.5×25.5 AIO boards, while the top plate offers
25.5×25.5 and 20×20 patterns for inverted stacks or additional hardware. You can
configure it as a smooth 2S cinematic / cruising rig, or build a
3S micro “rocket” for tight-space freestyle. TPU parts are designed for a rear linear
antenna and a front 14 mm Nano cam or DJI O4 camera in its dedicated mount. With the
O4 “Light” camera and props up to 2.2 inch, your FPV feed stays clean with no props
in view.

D-Micro – What’s in the Box & Video

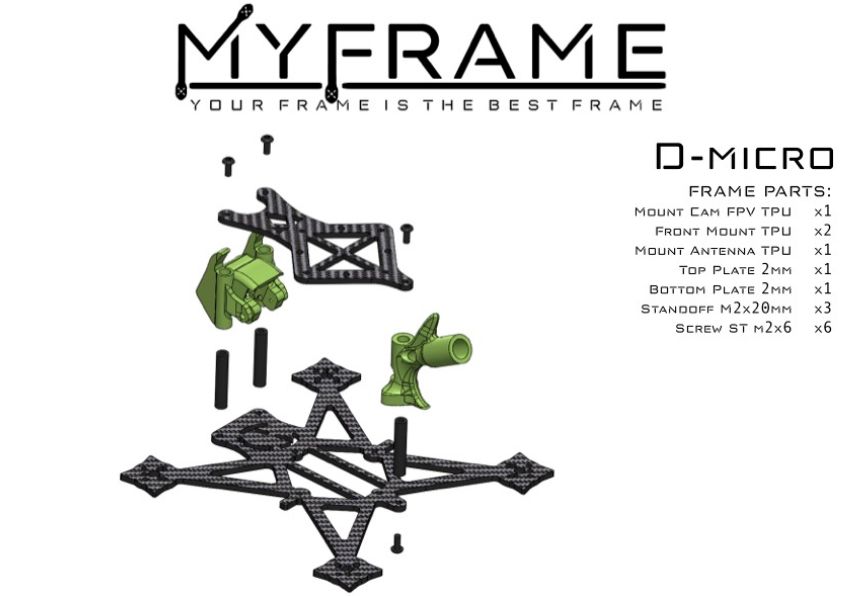

What’s in the Box

• 1 × Top plate 2 mm
• 1 × Bottom plate 2 mm
• 1 × Cover cam o4 lite D-Micro
• 1 × Mount antenna d-Micro corta
• 1 × Mount cam inclinabile D-Micro
• 3 × 20 mm anodized M2 aluminum standoffs
• 8 × M2×6 standard screws

Video & Downloads

• STL files (3D prints):
  official D-Micro STL set, free download from

  My Frame FPV
